LK-T80 Durable Thick Aluminum Foil Pan Oven Safe One Time Use Container Making Counting Line

T80 Aluminum Foil Container Making Machine Product Description

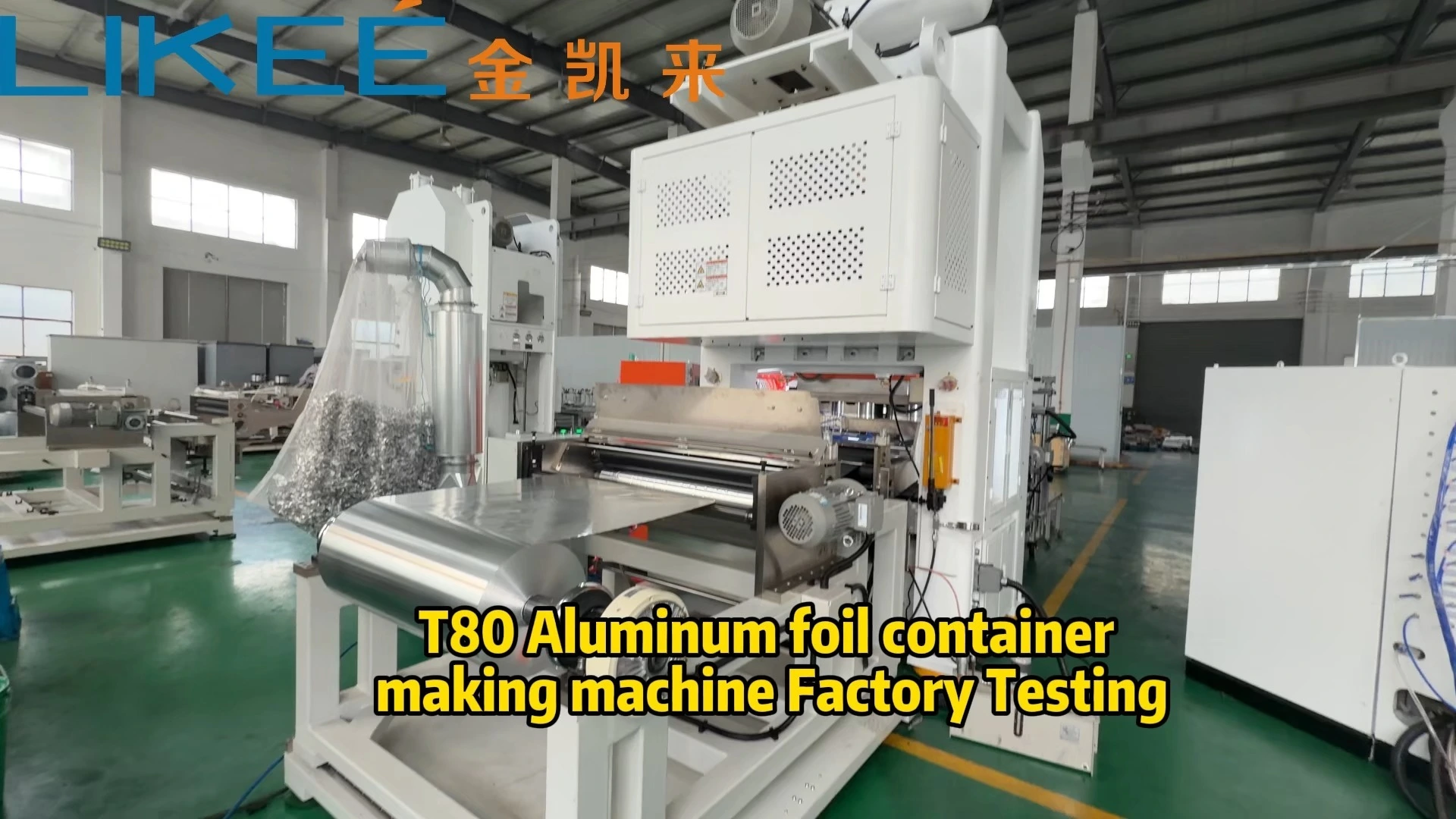

The LK-T80 Aluminum foil container making machine is a fully automatic production line engineered to meet the growing demand for high-quality, oven-safe aluminum foil containers in the baking, takeaway, and prepared meal industries. It integrates high stability, efficiency, and operational safety, making it ideal for producing disposable thick aluminum foil pans suitable for oven use.

At its core, the line features a heavy-duty H-frame structure and a solid worktable, ensuring exceptional stability and precision even at high speeds of 35-68 strokes per minute, thereby extending the service life of both the machine and molds. The fully sealed lubrication system eliminates oil contamination, guaranteeing a clean production environment for food packaging while improving energy efficiency. The integrated safety door with an auto-stop function provides the highest level of operator protection. Equipped with a mold lifter arm and a quick mold change system, a single operator can complete a mold change in approximately 15 minutes, significantly enhancing production flexibility and responsiveness to small-batch orders.

From automatic feeding and precise stamping to finished product stacking and counting, the LK-T80 achieves true "one-person, one-machine" full-process automation. It is designed to help you supply the high-demand oven-safe aluminum foil container market with lower operating costs and consistently high quality.

T80 Aluminum Foil Container Making Machine Key Product Features

1. Frame Structure: Heavy-duty H-frame, solid worktable

2. Production Efficiency: 35-68 SPM, 9,000-12,000 pcs/hour

3. Safety Protection: Safety door interlock, auto-stop when opened

4. Core Components: Mitsubishi PLC control system, Siemens/ABB main motor

5. Lubrication System: Fully sealed circulation, clean and energy-saving

6. Ease of Operation: Single-operator, 15-minute quick mold change

7. Mold Compatibility: Supports 4-6 cavity molds, customizable logos & embossing

8. Design Life: Main machine design life over 10 years

9. Material Adaptability: Compatible with 0.025-0.2mm foil like 3003H24/8011H22

10. International Certification: CE, SGS certified.

Technical Parameters Overview

Item	Specification
Model	LK-T80
Frame Type	H-Frame
Nominal Pressure	80 Ton
Working Speed	35-68 Strokes/Minute
Theoretical Output	9,000-12,000 Pcs/Hour (mold dependent)
Suitable Material Thickness	0.025 - 0.2 mm
Total Power	Approx. 26 KW
Power Supply	380V / 50Hz / 3 Phase
Machine Weight	Approx. 14,500 KG

T80 Aluminum Foil Container Making Machine Detail

Aluminum Foil Container

Aluminum Foil Container Making Machine Shipping

LIKEE Customer Cases

T80 Aluminum Foil Container Making Machine FAQ

Q1: Why is this called a "Thick Aluminum Foil Pan" line? How is it different from a regular container line?
A1: It is optimized for producing oven-safe containers from thicker gauge foil. It has greater pressure (80-ton) and a more stable structure (H-frame) to prevent deformation when stamping thick materials (e.g., 0.1-0.2mm), resulting in rigid containers with sharp corners that resist warping during heating.

Q2: What exactly does "Oven-Safe" mean? What standard can the produced pans meet?
A2: "Oven-Safe" means the containers are made from suitable aluminum alloy (e.g., 3003H24) and can withstand typical oven temperatures for short durations (e.g., 220°C). The production line ensures precise dimensions and uniform wall thickness, which are fundamental to consistent oven-safe performance.

Q3: How does the "Automatic Counting" function work, and how does it help my production management?
A3: The machine automatically counts finished products and displays the count on the touchscreen. This allows you to easily track shift output, calculate material usage, and manage production data accurately, eliminating manual counting.

Q4: The line speed is adjustable. How do I choose the best speed for my operation?
A4: Speed is continuously adjustable between 35-68 SPM. Recommendation: Use higher speeds for maximum output when molds are in good condition; slightly reduce speed when running extra-thick materials or complex shapes to prioritize stability and quality.

Q5: The safety door auto-stop sounds good, but if doors are opened by mistake causing frequent stops, will it hurt efficiency?
A5: No. This function only activates if the door is opened while the machine is running. During normal operation, there is no need for operators to open the door while it's running. It is a safety feature for maintenance or abnormal situations and does not affect continuous production under proper operating procedures.

Q6: Is the production line easy to operate and maintain?
A6: Yes. The control interface is user-friendly. Maintenance requirements are minimal; the sealed lubrication system only needs periodic checks. Key electrical components (e.g., Mitsubishi, Siemens) are globally available for easy servicing.

Q7: Can we produce pans with our company logo?
A7: Absolutely. The logo section of the mold uses a replaceable, modular design. Simply provide your logo artwork, and we will produce the logo insert block. You can then switch logos without needing entirely new molds.

Q8: We are a bakery looking to add an aluminum packaging line. Can this line meet our startup needs and allow for future growth?
A8: Absolutely. The LK-T80 itself offers high capacity and full functionality for your current and growing needs. Future upgrades like adding embossing or printing can be achieved through modular additions, protecting your initial investment for the long term.
