Name: Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper
Uploaded: 2026-08-27T15:43:26+08:00
Description: PRODUCT INTRODUCTION This semi-automatic rewinding machine is built on a 2-shaft alternating structure, designed for stable daily production of aluminium foil and baking paper rolls. As a team specializing in aluminium foil container production lines

Inquiry

Write a Review

PRODUCT INTRODUCTION

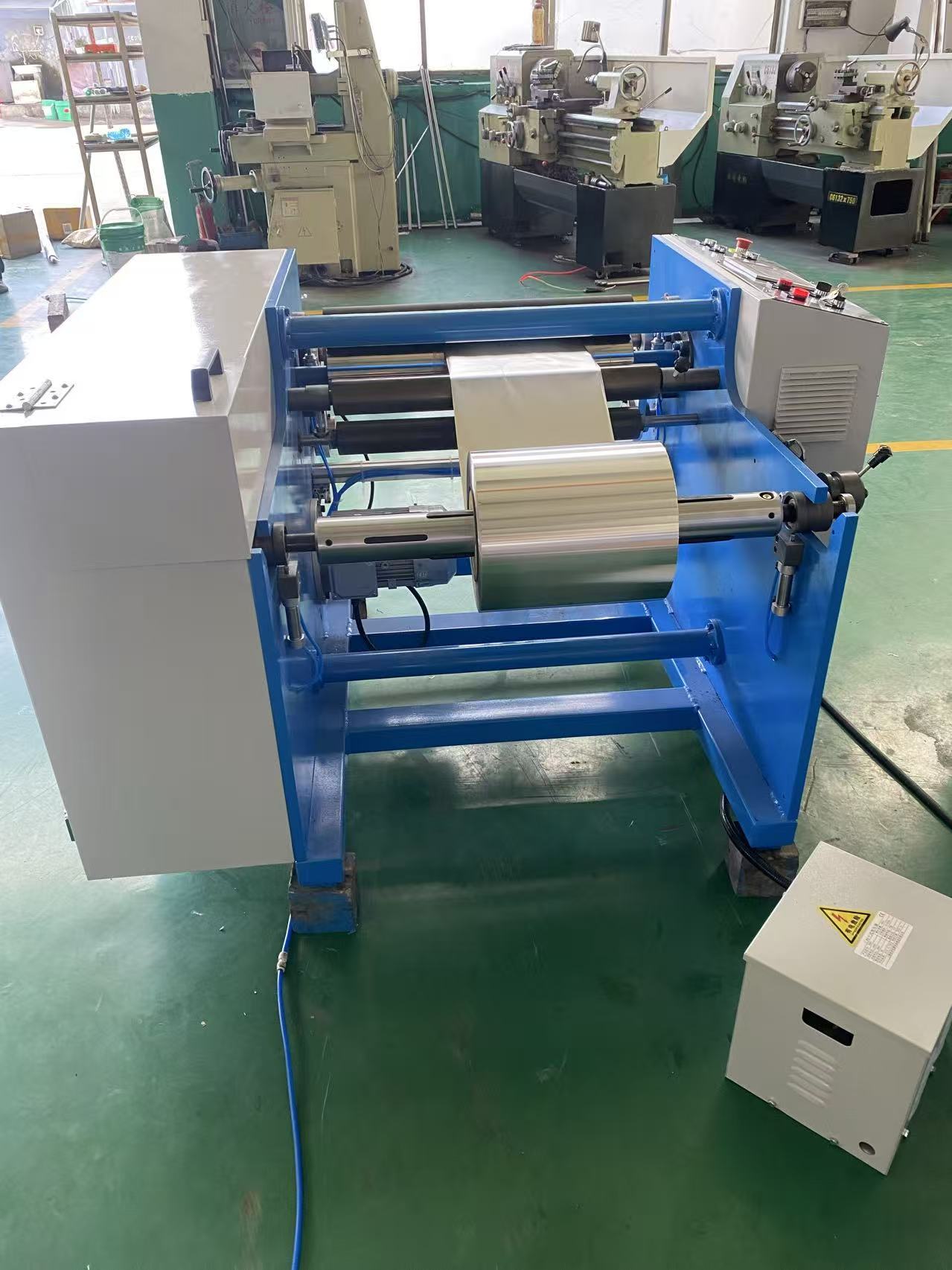

This semi-automatic rewinding machine is built on a 2-shaft alternating structure, designed for stable daily production of aluminium foil and baking paper rolls. As a team specializing in aluminium foil container production lines, we focused the mechanical design on rigidity and simplicity—fewer complex automated parts, less vibration at high speed, and easier maintenance. It's a workhorse machine for converters who need dependable output without the fragility of over-engineered systems.

semi-automatic foil roll rewinding machine

specification and features

Parameter	Specification
Material Thickness	0.009 - 0.03 mm
Material Width	100 - 500 mm
Raw Material ID	76 mm (3 inch)
Finished Roll ID	30 / 38 mm
Max. Working Speed	450 m/min
Control System	Mitsubishi PLC
Power Supply	380V, 50Hz, 3PH
Machine Dimensions	1200 * 1000 * 1000 mm

Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper 7

2-Shaft Type Structure

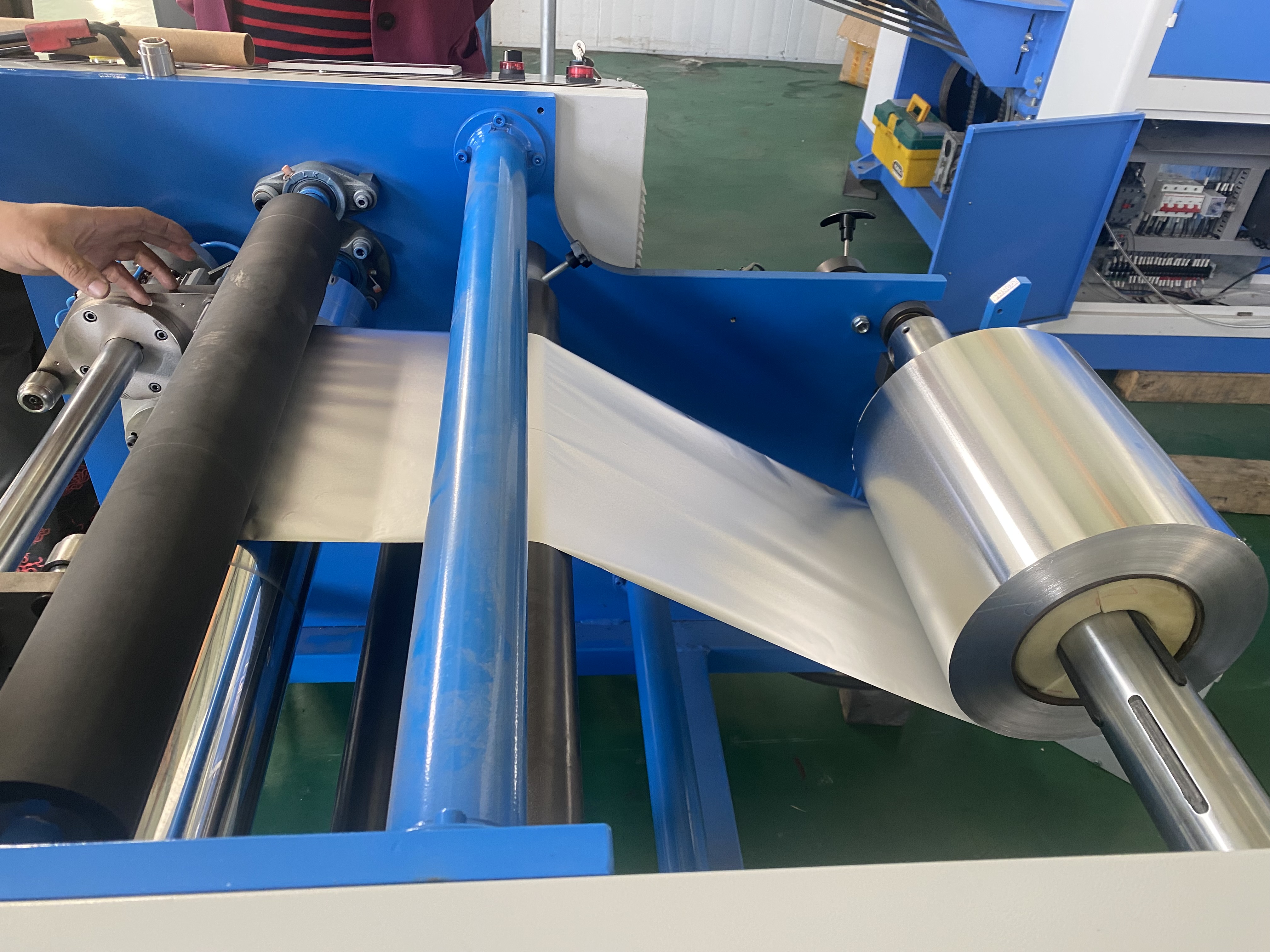

Two shafts work in rotation—one rewinds while the other is prepared. This back-to-back workflow eliminates long idle periods between rolls. The shaft mechanism uses standard bearings and pneumatic clamps, proven reliable in continuous workshop conditions.

Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper 8

Rigid Frame for Stable Running

The machine weighs 700KG with a reinforced base frame. At 450 m/min, this mass absorbs vibration and keeps the rewinding tension steady. You won't see the "wobble" common in lighter machines that causes edge misalignment or foil wrinkling.

Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper 9

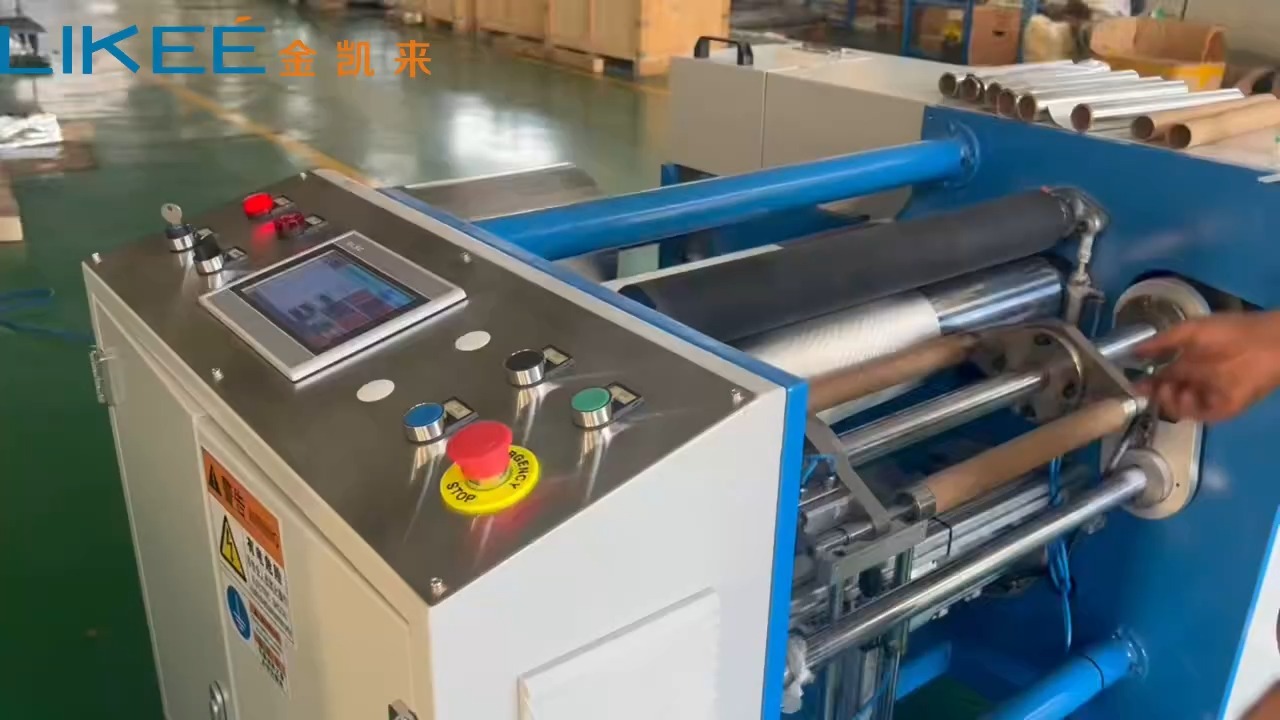

Mitsubishi PLC as the Control Core

All critical actions—tension control, length counting, auto-cut—are managed by the PLC. The operator sets parameters once, and the machine repeats them consistently.

Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper 10

Dual-Material Capability

The same 2-shaft structure handles both aluminium foil and baking paper. Tension and speed can be adjusted via the PLC menu to match each material's properties. One machine, two product lines.

Product Display

Video List

Semi-Automatic Aluminium Foil Rewinding Machine (2 Shafts Type) for Foil & Baking Paper 14

related machine

Fully automatic foil roll rewinding machine

Cling film rewinding machine

Small roll packing machine

FAQ

What does "2 Shafts Type" mean in practice?

It means the machine has two rewinding shafts that work alternately. While one shaft is actively rewinding foil or paper, the operator loads a new core on the second shaft. When the first roll finishes, production switches to the second shaft immediately—no full stop in between.

Why is structural stability important for a rewinding machine?

At high speed (up to 450 m/min), any vibration or frame flex can cause uneven tension, wrinkled foil, or crooked edges. A rigid, heavy frame keeps everything aligned, so the finished rolls come out neat and consistent.

How heavy is the machine and why does it matter?

The machine weighs 700KG. This mass acts as a stabilizer—like a heavy flywheel—absorbing vibration from high-speed rotation. Lighter machines tend to shake at top speed, which leads to quality issues and faster mechanical wear.

Is this machine suitable for a business that only runs foil, not paper?

Even if you only process foil, the 2-shaft structure still delivers the efficiency benefit of continuous operation. The baking paper capability is an added bonus for future product expansion.

How much space does this machine need in the workshop?

The machine itself occupies about 1.2×1 meter of floor space. You'll also need room for raw material storage and finished roll packing, but the machine footprint is compact enough for most small to medium workshops.
